Compression, fatigue, fracture, wear and hardness, creep.

The following are the codified guidelines for improving mechanical properties (MEC) based on case analyses:

MEC-01. The percentage of filler must be increased to increase the mechanical strength.

The mechanical resistance increases with the percentage of filler, whether it is resistance to tension, bending, impact, or compression [1]–[4].

MEC-02. For 100% infill density, use +45°/-45° infill orientation for any loading, except creep, where 90° orientation is recommended.

At 100% infill density, infill orientation does not produce significant changes in tensile, flexural, and compressive strength, with sensitivity for impact strength, fatigue strength, and fracture toughness. For sensitive properties, it is recommended to use +45°/-45° infill orientation. For creep (slow creep deformation), a 90° infill orientation is recommended [1]–[4]

MEC-03. Manufacturing parts with an infill density of 100% subjected to compression is necessary, regardless of the manufacturing orientation.

The anisotropy is low for compressive strength with 100% infill density percentages depending on the orientation [5], [6].

MEC-04. For optimal strength, it is recommended to fabricate parts oriented in the following order of highest to lowest strengths: edge, horizontal, and vertical.

The anisotropy of tensile strength, bending, and flexural fatigue is relatively low for edge and horizontal orientations, but very high when comparing edge and horizontal to vertical orientation [1], [7]–[9]

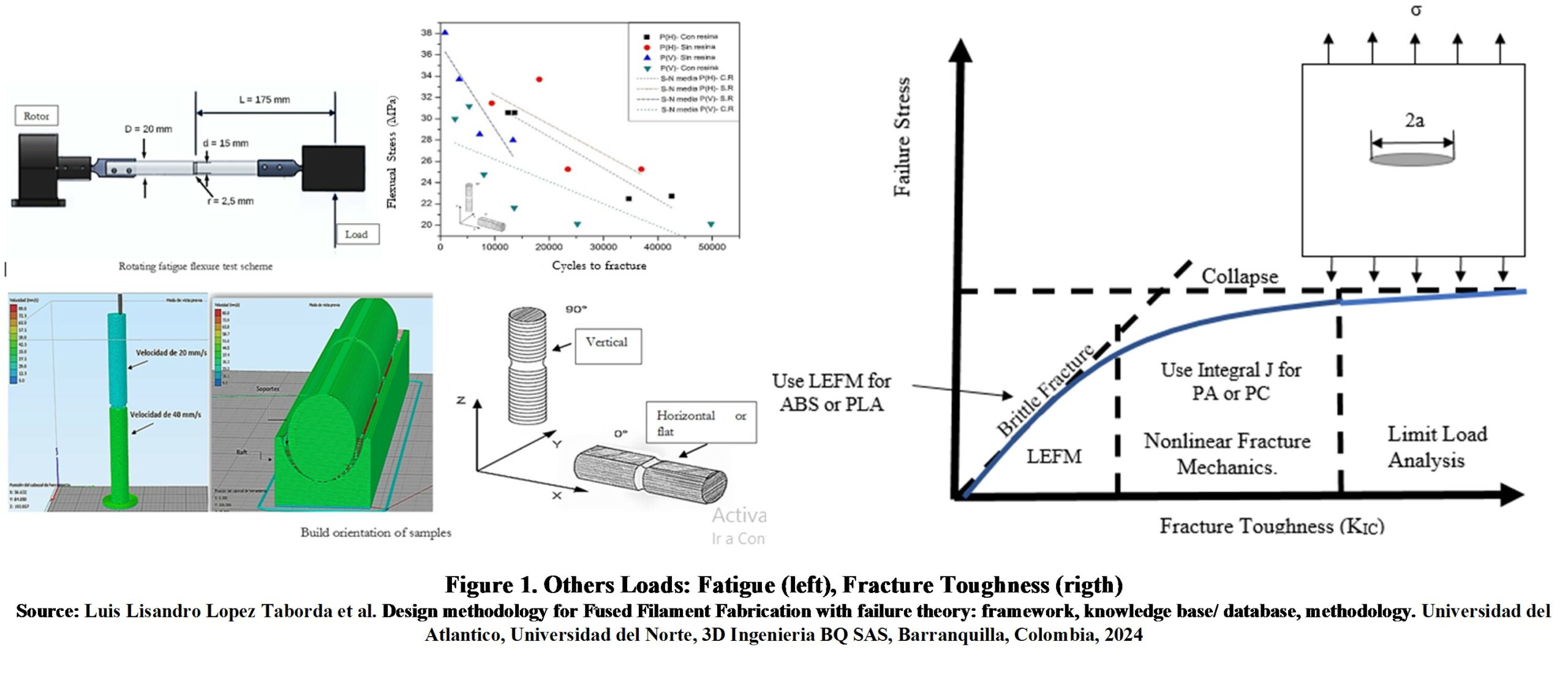

Figure 1-2 summarizes the specimen fabrication and test load orientations, illustrating the above guideline.

Figure 1-2 illustrates how it is preferable to manufacture the part so that the load is parallel or aligned with the manufacturing layer and not perpendicular to the build plane.



MEC-05. The optimal manufacturing orientations to achieve the highest strengths in fracture toughness, impact strength, and creep vary depending on the type of load and other factors. For example:

  • Impact strength depends on the material, and the most favorable orientation may vary [7].
  • For fracture toughness, it is advantageous to manufacture in a vertical orientation rather than horizontal, as the crack is oriented perpendicular to the printing plane [10].
  • In terms of creep resistance, the edge influenced by perimeter layers is the most resistant, followed by the vertical and horizontal orientations [11], [12].



MEC-06. Before modifying parameters to enhance strength, to take a decision is recommended to characterize the strength of parts to printing speed, extrusion temperature, and layer thickness.



The effect of process parameters on strength varies depending on the material, interrelationships with other parameters, nonlinearities, and factors such as printer, material suppliers, build orientation, and infill orientation. While there is a general tendency to increase temperature, decrease speed, and reduce layer height to improve strength, there may be cases where the opposite is true, depending on the specific circumstances mentioned [8], [13], [14].



MEC-07. To increase the compressive strength of printed parts, reduce the layer height [5], [6], [15], [16].



MEC-08. For semi-crystalline materials such as PLA, the temperature of the platform should be increased because it increases the impact strength, reduces anisotropy [4].



MEC-09. Stored material should be protected from elevated temperature and humidity because they reduce strength. Sandwich aging increases ductility and increases the effective failure loads when parts are subjected to bending [17].

MEC-10. Use honeycomb filler to obtain the best strength vs. fill density ratio over other filler types, but fabrication times will increase [5], [6], [15], [16].

MEC-11. It is recommended to fabricate only one piece at a time. The fabrication time affects the mechanical properties of the parts; therefore, the number of replicas fabricated affects and reduces the strength of small-area parts (vertical 3D prints) [18].

MEC-12. Choose the type of support based on strength while paying attention to printing times, material waste, accuracy, and roughness to align with the design’s required objectives. The type of support used in cantilever, overhang, or bridge parts affects the accuracy and mechanical strength of the part [19].

MEC-13. The recommendation is to mechanically characterize the materials and the parts built with them [20], [21].  The mechanical properties reported by manufacturers do not correspond to those of mechanical characterizations of scientific articles and are above the scientific values. The properties of a material can vary from supplier to supplier, and mechanical properties vary from industrial to desktop machines for reasons such as the high chamber temperature that desktop printers lack. Mechanical properties may vary depending on the type of specimen used for testing, the size of the nozzle, or the number of perimeter layers.

MEC-14. Please select the color of the PLA carefully, as it can affect the mechanical properties. Color is not significant in mechanical properties except in semi-crystalline materials such as PLA [15].

MEC-15. Consider combining it with other processes to improve mechanical resistance (impact, toughness, flexural, tension, compression) , such as coatings [7], [22], [23], [24] infiltration [25],[26] and thermal treatments [27], [4].

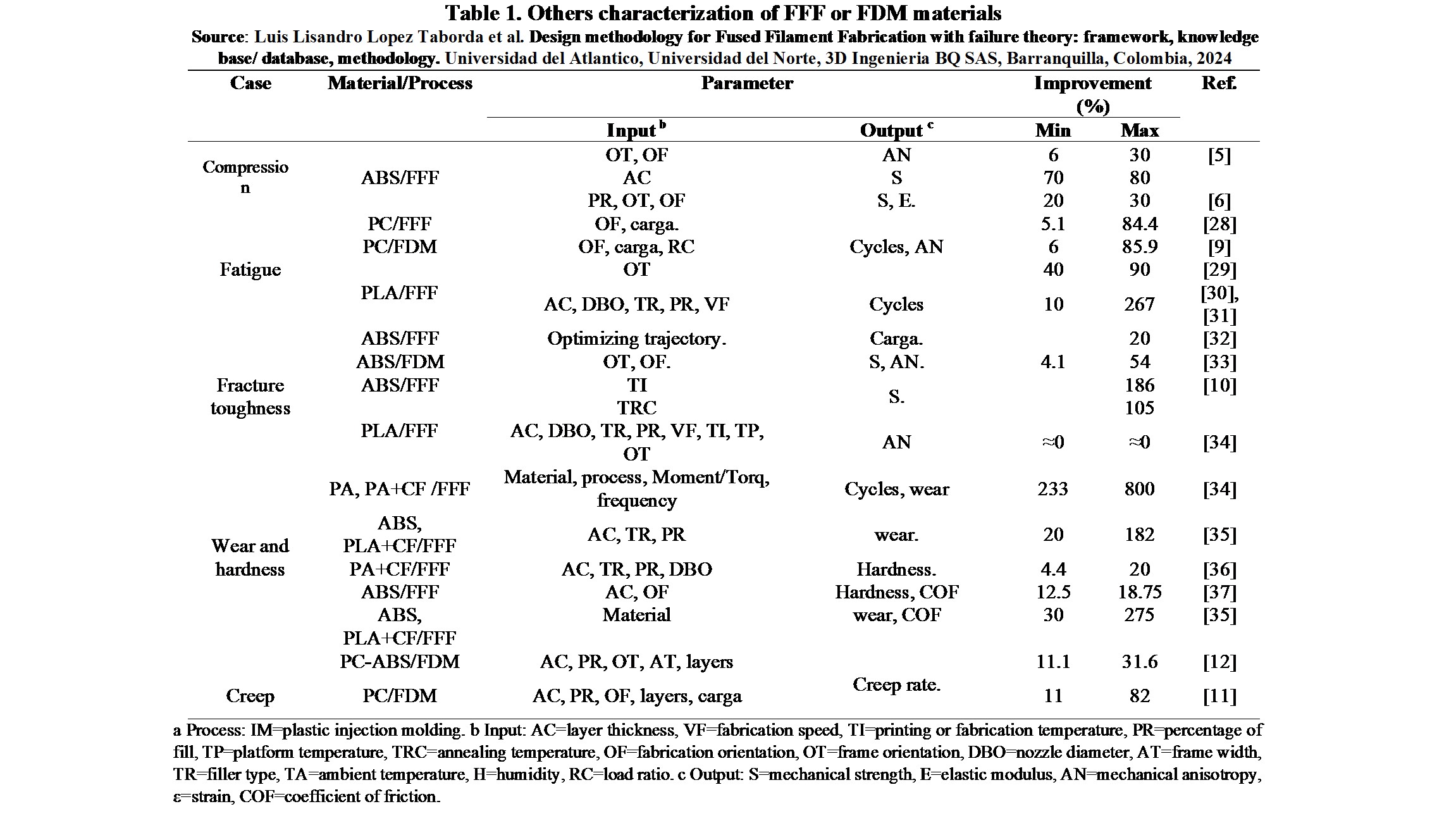

To interpret the findings in Table 1, an example is provided:

  1. For reference [5], the improvements achieved in ABS FFF compression characterization range from a minimum of 6% to a maximum of 30%, as indicated below the “Improvement (%)” column. The improvement corresponds to mechanical properties AN or Anisotropy which specified below the “Parameter” and “Output” columns. The input parameters that were modified to achieve this improvement are OT, OF, which represent infill orientation or frame orientation and fabrication orientation or build orientation; this is specified below the “Parameter” and “Input” columns, along with the table footer indicating the meaning of the table symbols. The specific material and process details are provided in the “Material/process” column and the type of characterization is specified in “cases”. The improvement values are presented as ranges (min and max), because the specific values depend on the interaction of FFF processing factors.

To use the figures of Table 1 or the database of failure theory and mechanical characterizations, from which these figures are derived, when designing a product, proceed as follows:

  1. Know the product’s properties a priori and compare them with the respective table or base until the material combination, output, and input parameters correspond to the desired property value.
  2. In case of redesign of parts outside of specifications, verify the percentages of improvement and the combination of material and parameters.
  3. Quantify times and costs associated with parameters to decide based on properties and costs.
  4. Consult on the specific base on the specific way to combine the parameters.
  5. In case of requiring clarification or expansion of specific information, consult the reference.



For more figures on improvements associated with characterization in tension, flexure, impact, compression, fatigue, wear and hardness, creep, and fracture toughness go to the database.
